68 Katy Schematics and Parts List
A number of people asked for a parts list and schematic for 68 Katy, so they could build their own version. Here it is! Please let me know if you find any errors.
Parts List
- Motorola 68008 CPU, 8 MHz, 48-pin DIP package
- AM29F040B 4 megabit Flash ROM
- BS62LV4006PIP55 4 megabit SRAM
- Sparkfun FT245RL USB to FIFO breakout board
- 2 MHz metal can oscillator
- NE555P timer, 8-pin DIP package
- 74LS139 decoder
- 74LS377 8-bit register
- 74LS244 8-bit tri-state driver
- 74LS00 quad NAND
- 74LS08 quad AND
- 74LS32 quad OR
- Lattice GAL22V10D logic array
- bypass capacitors, resistors, LEDs, buttons, etc.
The GAL was used to replace some of the glue logic that would otherwise have required more NAND’s, OR’s, flip-flops, etc. If you’re building your own version of 68 Katy, you don’t necessarily need the GAL. Just replace it with the equivalent 7400-series basic logic gates.
Memory Map
00000 - 77FFF : ROM 78000 - 79FFF : serial in 7A000 - 7BFFF : serial out 7C000 - 7DFFF : serial status 7E000 - 7FFFF : LED register 80000 - FFFFF : RAM
CPU

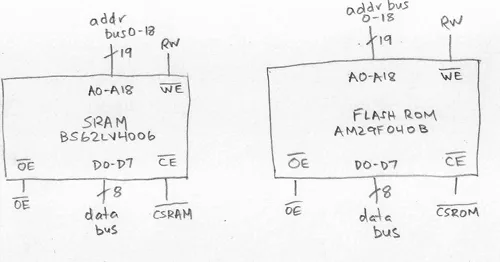

RAM and ROM

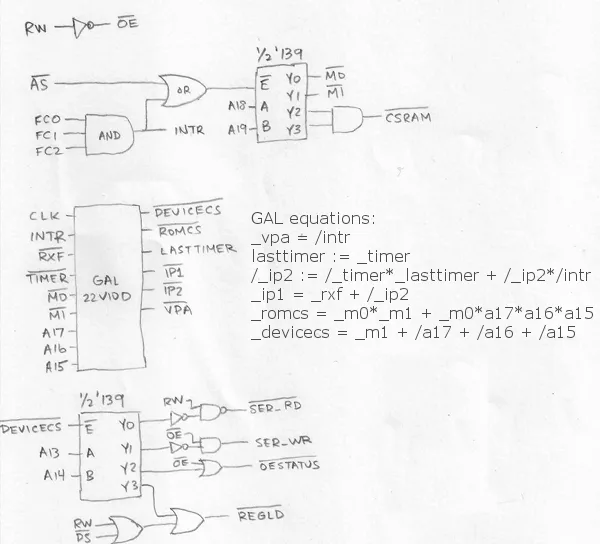

Control Logic

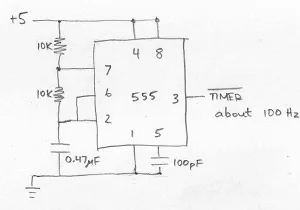

555 Timer for Scheduler

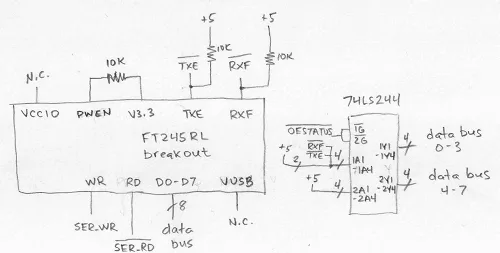

USB Serial FIFO

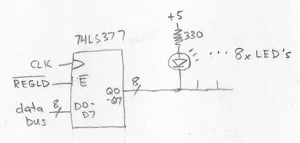

LED Display
