ADB-USB Wombat Case Assembly

Assembly instructions for the ADB-USB Wombat acrylic case:

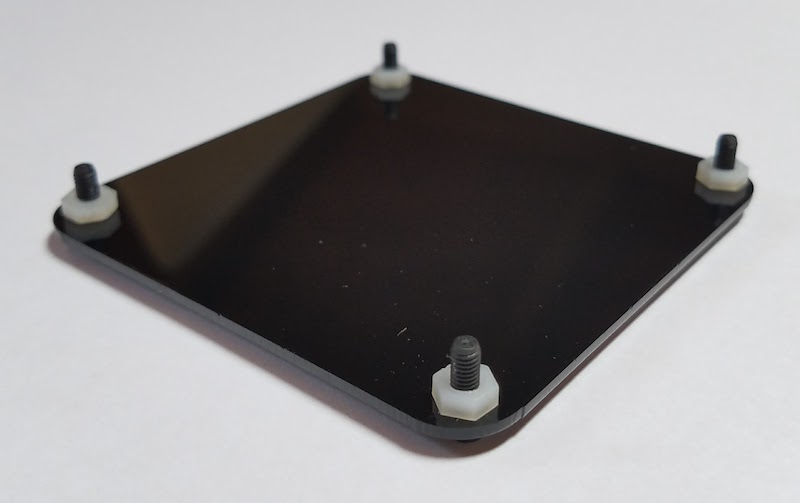

1. Insert four screws through the holes in the bottom plate, and attach them with nuts.

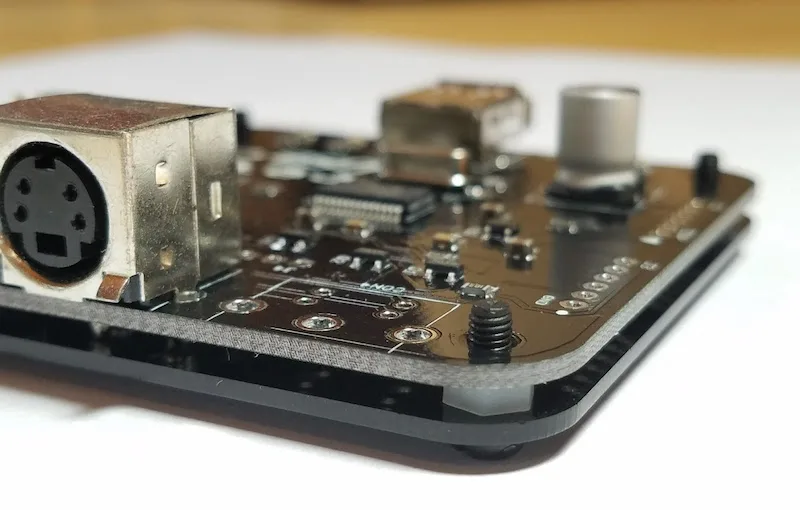

2. Place the board onto the projecting screws, so they pass through the holes in the board.

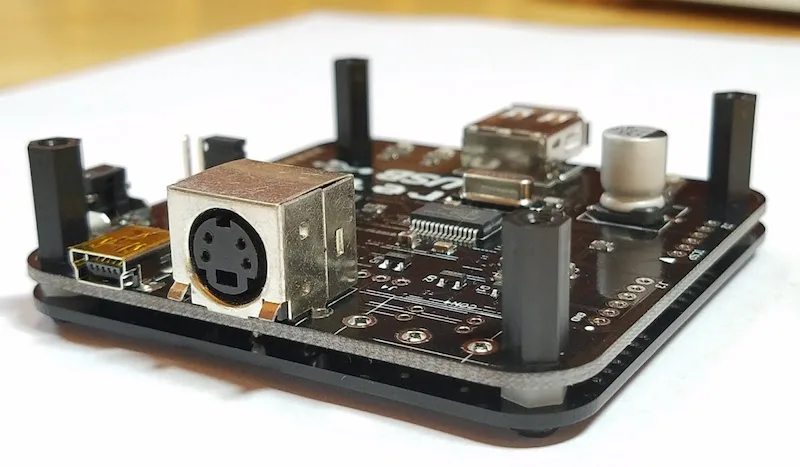

3. Attach four standoffs onto the projecting screws, anchoring the board to the bottom plate.

4. Rest the top plate on the standoffs.

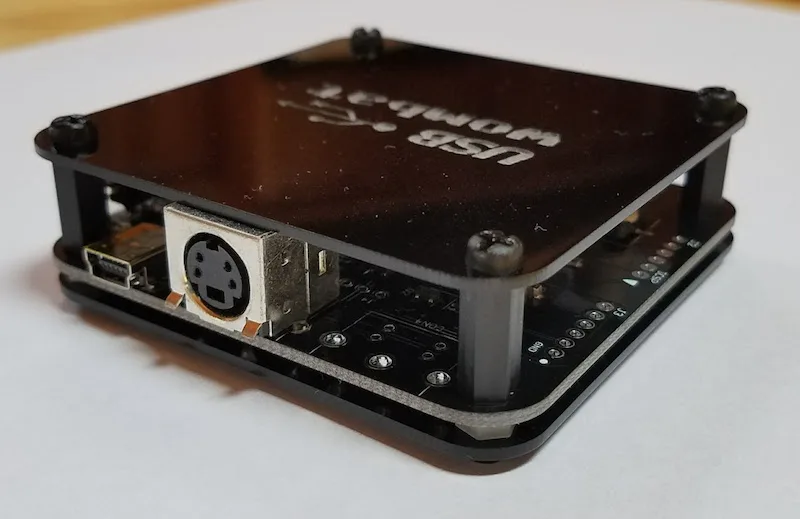

5. Turn four screws through the holes in the top plate and into the standoffs.
