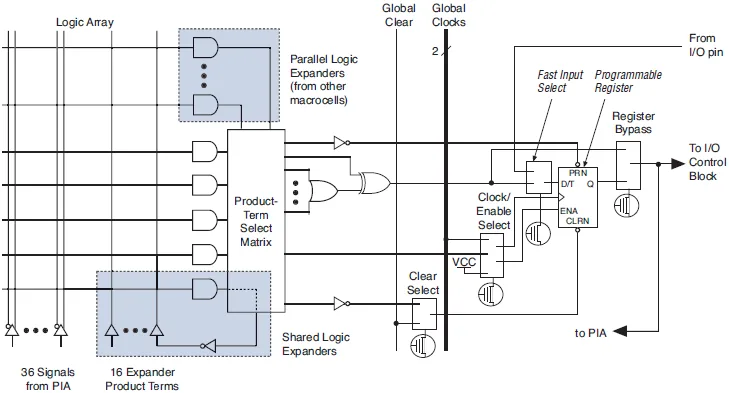

I’ve been planning to use an Altera Max 7128S for this CPLD – CPU project, because at 128 macrocells it’s the largest commonly-available CPLD that I could find in a PLCC package. Yesterday, however, I started wondering how the competition…
I decided to take the advice I gave myself in the comments of my previous post, and actually synthesize the three Verilog adder examples to see what would happen. I tried each of the examples under Quartus II Web Edition…
I’m having some trouble finding the best way to structure the Verilog code for this CPU. In particular, I’ve encountered one small headache and one larger one. The small headache relates to the best way to describe complex combinatorial logic…
I’ve made a little bit of progress on the CPU in a CPLD project. As mentioned previously, this will be an 8-bit CPU with a 10-bit address space, targeting a 128 macrocell CPLD. The instruction set will be a simplified…
OK, the CPU design spark is back, sooner than I’d expected. I have an urge to implement a minimal CPU using a CPLD. If you’re not familiar with the term, a CPLD is a simple programmable logic chip, existing somewhere…
It works! I’ve continued poking away at this circuit to decode an RC airplane servo signal and trigger a camera shutter during flight, and I’m happy to report success!Once I switched to using the CD4013 flip-flop with a positive logic…
