Tiny CPU Board Design

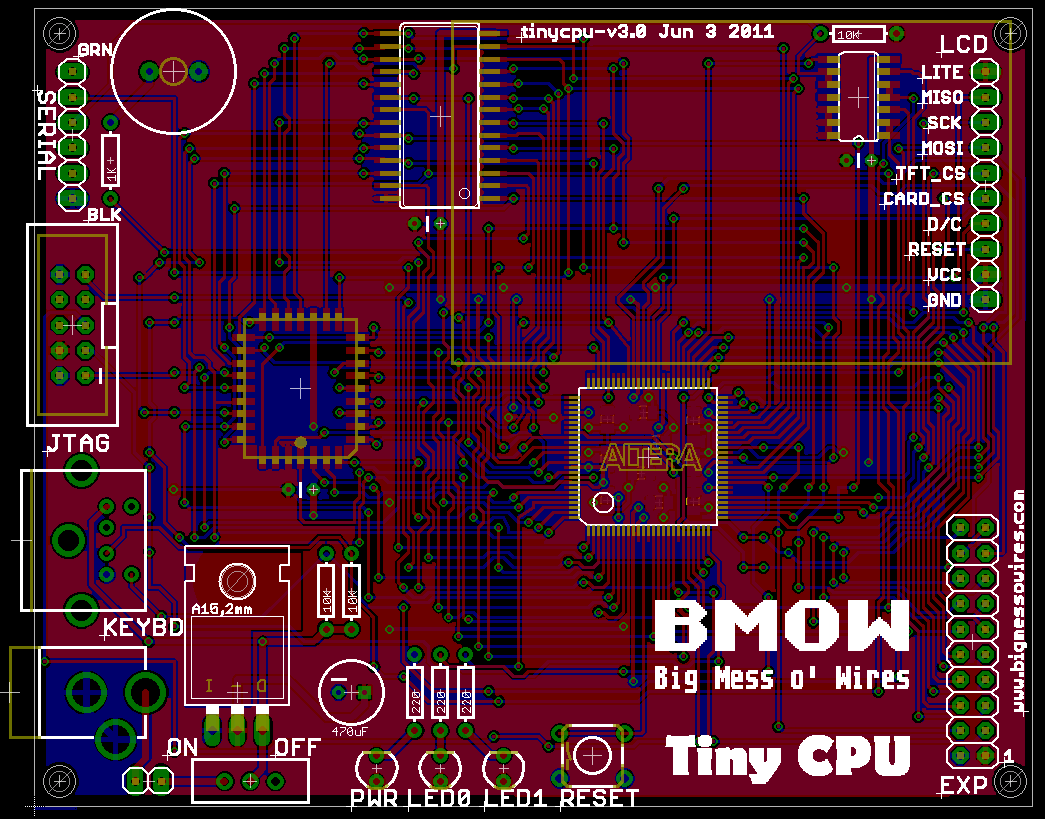

Whew! It was a big job, but I finished the Eagle board layout for the new Tiny CPU, using the Max II CPLD. The board is about 4×3 inches, and if your monitor has a typical 72 DPI, then the image to the left is actual size. It’s clear that soldering the 100 pins on the Max II is going to be a challenge. Click the image to see a higher-resolution version of my horrible component placement and routing.

Routing all those connections was a long, difficult job. You can see I left myself lots of extra space around the CPLD to help with routing, but the space between the CPLD, RAM, and ROM is still packed to the roof with traces.

I’m happy I was able to get all the traces to fit, since part-way through the task, success looked doubtful. Unfortunately I was forced to abandon the goal of routing all unused I/O pins to an expansion header, because I simply ran out of room. I managed to route 18 I/Os to the header, but the remainder of the unused I/Os are unconnected and unusable.

I’ll probably sit on this for a day or two, giving myself a chance to remember any last-minute stuff I forgot, before sending it to a board house for manufacturing. I’ll probably go with Seeed Studio this time, since ten copies of this 8x10cm board with 50% E-Test are only $25. Having ten copies will be a big help, when I melt the first few trying to solder those nano-scale pins!

Read 11 comments and join the conversation

Tiny CPU Rebirth?

With the Backcountry Data Logger more or less finished (just waiting for the PCB), my thoughts have returned to my neglected Tiny CPU project. I did a huge amount of design work on Tiny CPU about a year ago, finishing the complete CPU design in Verilog, as well as a companion design called Tiny Device for bank switching and peripheral I/O. I even built a test board using the target CPLD (a 128-macrocell Altera EPM7128), so I could experiment with JTAG programming and various construction issues. But then progress stalled, and there’s been nothing further for a year.

I lost interest in Tiny CPU. Why? I don’t fully understand it myself, but two reasons in particular are big contributors:

Questionable Value – There are lots of small soft CPU cores out there, with probably 100 different designs on opencores.org alone. Some of the better ones like PicoBlaze provide a very capable CPU that still fits a pretty small device. Or on the other end of the scale, soft CPUs like MCPU are academic masterpieces, fitting into the smallest devices, even if they aren’t very capable or practical as CPUs. Tiny CPU occupies an awkward middle ground where it requires nearly as large a device as PicoBlaze, yet provides not much more capability than MCPU. So what’s the point?

Construction Fatigue – After completing the Verilog design work, all that remained was to actually build a computer using Tiny CPU. I say “all” with some sarcasm, because designing the required PCB and working out all the necessary connections between the twin CPLDs and SRAM and ROM is a huge job, not to mention writing all the software needed to make it work. At the time, I was really much more interested in the CPU design work than the construction aspect of the project.

Not too much has changed since then, except that I’m more interested in custom PCB design and construction than I was before. I also hate to see a project abandoned half-finished, so I’m considering returning to Tiny CPU with a different focus. I can’t do much about the questionable value of Tiny CPU, but honestly, who ever said any of my projects had value? I can do something about the construction question, though, so that’s where I’ll focus my attention.

Enter the Max II

The original Tiny CPU design called for an Altera EPM7128, a comparatively old 5V device in a PLCC package, allowing for through-hole soldering with a PLCC socket. Tiny CPU and Tiny Device each required a separate CPLD, so there would be two of them on the computer board. I insisted on the EPM7128 because I wasn’t confident I could solder the surface mount packages that most newer devices use, and also because I liked the challenge of fitting 128 macrocells.

I’m now looking at using an Altera Max II, which is a much more modern CPLD with the equivalent of roughly 192 or 440 macrocells in the two smallest sizes. The Max II is a 3.3V device, so this change would involve moving all the other components in the system to 3.3V as well. Fortunately 3.3V SRAM, Flash ROM, and LCDs are pretty easy to find, so that’s not an issue. The only challenge would be the PS/2 keyboard interface. The keyboard data and clock signals are unidirectional in the Tiny CPU design, and use an open collector and pull-up resistor instead of actively driving 5V, so that wouldn’t be a problem. However, the keyboard itself would require a 5V supply.

Switching to the Max II would entail combining Tiny CPU and Tiny Device into a single CPLD, creating something that’s a bit more like a microcontroller than a traditional CPU. The Max II comes in a 100-pin TQFP package with 0.5mm pin spacing, so it would be a real challenge to solder, but I’ve been told repeatedly that it can be done.

The Max II also has a few other advantages. It has a built-in clock generator and power-on reset circuitry, allowing me to delete two external parts from my original design. It also has 1KB of internal Flash memory, which might be useful for bootstrapping.

The final advantage of the Max II, especially the 440 macrocell-equivalent version, is that it would provide some breathing room to recover from mistakes. The original Tiny CPU and Tiny Device designs both just barely fit the EPM7128, and any bugs discovered after construction might require fixes that would push them over the capacity of the device. Some combination of the tight fit and age of the device also gave Altera’s synthesis software problems: if I synthesized, back-annotated the result, and synthesized again, it would fail to fit the second time. That meant that I couldn’t use back-annotation or pin constraints, and any trivial Verilog change might result in new pin assignments that no longer matched the board.

Of course, with a larger device, the very resource constraints that motivated the original CPU design would no longer apply. It might now be possible to increase the address space beyond 10 bits, or add some of the additional address modes that didn’t fit before. I’ve decided I would ignore these opportunities, though, and instead focus on implementing the original design in new hardware. I don’t really have the enthusiasm to revisit the whole CPU design part of the project, so the project would be an example of a generic “small” soft CPU realized in hardware, rather than an exercise of optimizing a CPU design to the size of a particular device.

Read 9 comments and join the conversation

Tiny CPU Instruction Set

After four months of inactivity, here’s some documentation for the Tiny CPU instruction set.


opcode

x0

x1

x2

x3

x4

x5

x6

x7

x8

x9

xA

xB

xC

xD

xE

xF

0x

SUB abs SUB imm SUB abs,X ADD abs ADD imm ADD abs,X CMP abs CMP imm CMP abs,X NOR abs NOR imm NOR abs,X

1x

LDA abs LDA imm LDA abs,X STA abs STA imm STA abs,X LDX abs LDX imm CPX abs CPX imm STX abs

2x

BNE
abs
BEQ abs BCC abs BCS abs

3x

PLA PLX RETURN PHA PHX JMP abs CALL abs INX DEX

Addressing Modes

imm immediate LDA #$1F operand is literal byte $1F
abs absolute LDA $1FF operand is contents of address $1FF
abs,X absolute, X-indexed LDA $1FF,X operand is contents of address formed by adding $1FF to the value in the X register
impl implied INX operand is implied by the instruction

Encoding

The instruction’s opcode is packed into the most significant six bits of a program byte. Instructions with no operands (implied addressing) require only a single program byte. Address operands are 10 bits, formed from the least significant two bits of the first program byte, and all eight bits of the second program byte. Immediate operands are 8 bits, taken from the second program byte.

Programmer-Visible Registers

PC program counter (10 bit)
SP stack pointer (6 bit)
A accumulator (8 bit)
X index register (8 bit)
SR status register [carry, zero] (2 bit)

Processor Stack

LIFO, top down, 64 entry, $3C0 – $3FF

Instructions

ADD — add to accumulator with carry-out
A, C <- A + OPERAND
status flags affected: C, Z

BCC — branch if carry flag is clear
PC <- OPERAND if C = 0
status flags affected: none

BCS — branch if carry flag is set
PC <- OPERAND if C = 1
status flags affected: none

BEQ — branch is zero flag is set
PC <- OPERAND if Z = 1
status flags affected: none

BNE — branch is zero flag is clear
PC <- OPERAND if Z = 0
status flags affected: none

CALL — push return address onto stack, and branch to new location
(SP) <- PC
PC <- OPERAND
status flags affected: none

CMP — compare with accumulator
A – OPERAND
status flags affected: C, Z

CPX — compare with X register
X – OPERAND
status flags affected: C, Z

DEX — decrement X register
X <- X – 1
status flags affected: Z

INX — increment X register
X <- X + 1
status flags affected: Z

JMP — branch to new location
PC <- OPERAND
status flags affected: none

LDA — load accumulator
A <- OPERAND
status flags affected: Z

LDX — load X register
X <- OPERAND
status flags affected: Z

NOR — bitwise nor with accumulator
A <- A NOR OPERAND
status flags affected: Z

PHA — push accumulator onto stack
(SP) <- A
status flags affected: none

PHX — push X register onto stack
(SP) <- X
status flags affected: none

PLA — pull stack value into accumulator
A <- (SP)
status flags affected: none

PLX — pull stack value into X register
X <- (SP)
status flags affected: none

RETURN — pull stack value into program counter, and branch to new location
PC <- (SP)
status flags affected: none

STA — store accumulator
OPERAND <- A
status flags affected: none

STX — store X register
OPERAND <- X
status flags affected: none

SUB — subtract from accumulator with carry-out
A, C <- A – OPERAND
status flags affected: C,Z
Read 7 comments and join the conversation

Pin Constraints

I think I’ve found answers for all the big questions about Tiny CPU’s design, and I’m ready to start creating the final schematic and board layout, save for one issue: pin constraints. I need to constrain which signals are assigned to which pins, because once I create the Tiny CPU board, I can’t change those pin assignments again. If a minor bug fix to the Verilog code caused some enable signal to be reassigned to pin 63 instead of pin 20, I’d have to create a whole new revision of the board.

The normal way to address this problem is by specifying pin constraints in the design software, Altera’s Quartus II in this case. I’ve tried that with both the Tiny CPU and Tiny Device designs, which are two entirely separate CPLD projects, but it doesn’t work for either one. If I take the pin assignments that were originally chosen by the design software, enter constraints that specify that it must keep those same assignments, and then recompile the design again, the software complains that the design won’t fit the device. The constraints that define what has already been fit, suddenly no longer fit. This behavior is the same for both designs, and after trying several different methods of specifying constraints at the pin, cell, and LAB levels, using back-annotation as well as manual constraint entry.

I’m going to move forward without constraints, since I don’t have a choice. With luck, any minor bug fixes at the Verilog level will still produce the same pin assignments that I have now. If not, I’ll be spending a lot of money manufacturing board revisions.

Read 2 comments and join the conversation

Tiny Device

Tiny CPU just barely squeezes into a 128-macrocell CPLD, and so I’ve designed a companion chip called Tiny Device to handle other interface functions. It utilizes a second CPLD, and was originally envisioned as a simple address decoder, but its functions have grown and grown again. The second CPLD is now completely filled as well, and Tiny Device has turned into the Swiss Army Knife of this computer system. Here’s a list of its capabilities:

Address Decoding

As I described in yesterday’s posting, the Tiny Computer memory map is more complex than just statically-mapped RAM and ROM ranges. Tiny Device employs bank switching to dynamically map one of 128 physical memory banks into the lower half of the CPU’s address space. It also manages eight I/O ports in the upper half of the address space, for controlling the bank switching and interfacing with other hardware.

Keyboard Inteface

A PS/2 keyboard interface is provided, using a variation of the design I built from discrete logic for BMOW 1. Incoming keyboard bits are shifted in to a register, and when a complete byte has been read, Tiny Device sets a status bit to inform the CPU. There is no buffering, so if the CPU doesn’t read the byte before the next one arrives (approximately 3 ms), data will be lost.

Serial Input

Using a super-sampling technique, Tiny Device provides a virtual 57,600 bps serial port. Similar to the keyboard, incoming bits are shifted into a register, and a status bit signals the CPU when a byte is ready. A one byte buffer is provided, so the CPU must read the byte before the final bit of the next byte arrives (173 us at 56K bps), or data will be lost.

Serial Output

A separate serial output circuit operates independently of input, providing for simultaneous two-way communication. A status bit informs the CPU when the output circuit is idle and ready to accept a new byte. The CPU must not send a new byte while the output circuit is still busy with the previous one.

LCD Interface

Tiny Device provides a basic interface for communicating with a 128 x 64 graphical LCD. Each of the LCD data and control lines is mapped to an I/O port, but no other control logic is implemented. The CPU is responsible for manipulating the lines as needed to communicate with the LCD, and observing its slow timing requirements.

Tick Count

An 8-bit tick counter is provided at one of the I/O ports. It increments every 3.2 us, and can be used for timing-sensitive loops used to generate audio, measuring the period of time between events, or seeding a random number generator.

Clock Division

To provide timing flexibility, a 20 MHz oscillator is divided by four to create the 5 MHz system clock. This allows the system clock speed to be increased or decreased later, without needing to replace the oscillator.

Output Port

A generic 8-bit output port provides direct control over two LEDs and a piezo speaker.

Status Flags

Tiny CPU queries the status register to get the current state of all I/O devices. This includes the ready flags for the keyboard, serial in, and serial out, as well as the current position of the up/down/set navigation switch.

All of this fits in 127 of the CPLD’s 128 macrocells, making Tiny Device an even tighter fit than Tiny CPU. The Tiny Device Verilog source can be viewed here.

Read 4 comments and join the conversation

Bank Switching

The Tiny CPU design has a 10-bit address bus — that’s all I could fit in the constrained space of the CPLD. 10 bits means 1K of addressable memory, which is practically nothing. I had planned to improve on this by using bank switching, but until recently, I hadn’t thought much about how it would work. After several days of ripping up one plan after another, here’s what I finally came up with.

With its 10-bit address bus, the CPU sees 1K of memory. This is divided into two 512-byte blocks. Block 1 contains the stack, I/O ports, and a scratch RAM area. It is the “common” block, and is always present in the CPU’s address space no matter what is happening with bank switching. In contrast, block 0 is a swappable memory area, and can be mapped to any bank in physical memory.

Physical memory is 64K, and is divided equally between ROM and RAM. The 64K physical memory space is partitioned into 128 banks of 512 bytes each.  Any bank can be mapped into block 0. Bank 127 is always mapped into block 1, the common block.

The bank select register is part of the memory-mapped I/O ports in common memory. To swap a bank, the CPU only needs to write the new bank number to the appropriate address.

This may all seem pretty simple, but take a minute to consider some of the implications:

  • Upon reset, bank 0 is mapped to block 0. That puts 512 bytes of ROM, 440 bytes of RAM, the I/O ports, and the stack all in the CPU’s address space. That’s plenty for many small programs, and means they won’t have to bother about bank switching at all.
  • Larger programs (lots of program code) can be accommodated by bank switching code segments in/out of block 0, all operating on common data in block 1.
  • Programs operating on large data structures can copy some bank-switching helper code to block 1, then swap additional RAM banks in/out of block 0.
  • Arguments can be passed on the stack to ROM helper routines in other banks, because the stack is in common memory.
  • All of ROM is addressable, with no holes. This makes storing images, audio samples, and other data in ROM much easier.
  • There is no difference in handling between ROM and RAM banks. A program running entirely from RAM works just like one whose code is in ROM.

Failures

While this design seems relatively straightforward, it took me a painfully long time to arrive at it. I went through several days of failed designs before settling on this one.

My first attempt was to divide the 1K space into a 768 byte ROM region and a 256 byte RAM region, reasoning that most programs would have more code than data, and then simply tack the bank select register onto the existing address bus. So A0-A9 came from the CPU, and A10-A17 came from the register. That worked poorly, because it swapped the entire address space at once. With that scheme, there’s no easy way to grow the program code space while sharing the same data, or vice-versa. It also left holes of inaccessible memory within each 1K physical memory bank, and caused the stack to disappear when switching banks. With more tricks some of those shortcomings could be addressed, but it didn’t seem promising.

My second attempt extended the first by disconnecting some of the higher-order RAM address lines. This caused the entirety of RAM to appear several times in the physical address space, at the cost of having less total RAM available. So for example, RAM might be repeated eight times in the physical address space, so that in the 768/256 ROM/RAM partitioning for banks N and N+8, the RAM portion would be the same in the two banks while the ROM portion differed. That provided a way to handle larger programs with lots of code sharing the same data, but not programs working on large sets of data. It also still had the same problems with memory holes. And with the different sizes and fixed locations of the ROM and RAM regions, it would be difficult to bootload a program and run it from RAM in the same way it would normally run from ROM.

I think there was a third, fourth, and fifth idea too, but the details all sort of blur together. They mapped 1K chunks of physical memory into the 1K CPU address space in different ways, combined with a split of the 1K CPU address space into ROM and RAM regions. They all sucked. I went through a lot of pieces of paper.

Eventually I hit on the idea of tying the ROM/RAM select to the bank register, rather than the CPU address. I don’t know why it took me so long to think of that, when it seems obvious now. I devised a scheme with two blocks with a 768/256 split, where either block could be mapped to any 1K bank of physical memory. When mapping a bank to the 768-byte block 0, the upper 256 bytes were inaccessible. And when mapping a bank to the 256-byte block 1, the lower 768 bytes were inaccessible. Yet any byte in a bank was accessible as long as you mapped it to the appropriate block. This wasn’t TOO bad, but was certainly awkward, and it also required two different bank select registers (one for each block).

Finally I went for a long run in the hills near my home. I find that when I’m sitting at my desk, trying to find the solution to something difficult, it never comes. All my good ideas come to me either when I’m driving, in the shower, or out for a run. About three miles in to the run, I thought about a 512/512 split, and realized that if the banks were also 512 bytes, I could fit a whole bank into a block, and eliminate all this weirdness.  As I said, it seems obvious now.

There’s one slightly unintuitive aspect to this scheme, which is a result of having 512-byte banks but a 1024-byte address space. The CPU address bus is A0-A9, but A9 is actually not connected to the memory at all! That took me a while to grasp. Instead, A9 is used as a select input to the address decoding logic, and determines whether a memory reference is to block 0 or block 1. It operates the mux that selects either the contents of the bank select register or a fixed value for the upper address lines. The A9 that is actually connected to the memory chips is generated by the decoding logic and is not the CPU’s A9.

Read 3 comments and join the conversation
