Lisa Floppy Emu, Looking Good

I’ve been crawling slowly closer to a working floppy emulator for the Apple Lisa, using my existing Floppy Emu hardware. I’ve now got something that’s broadly usable for emulation of Macintosh disks on the Lisa 2/10, when running under the Macworks environment, though it’s still far from perfect. The next step will be emulation of native Lisa floppy disks, so the computer can boot from the Emu and use it from within the Lisa Office System. Things are looking promising!


Setup

So far, most of the effort has gone into getting my borrowed Lisa to the point where I can actually run floppy tests. Initially it seemed no setup would be necessary – just plug the Floppy Emu into the Lisa, and see if it works – but reality has proven different:

  • Create a hacked version of Basic Lisa Utility that doesn’t need the M key (my M key is broken)
  • Buy/build a Lisa-to-PC serial cable to capture the BLU log data
  • Build a custom floppy drive A/B switch, so I can connect a real 400K drive and a Floppy Emu at the same time
  • Rewrite my floppy tester utility program in Think C 5.0, to avoid a mysterious crash bug on the Lisa

In order to capture the log data from BLU, I needed a serial connection to the Lisa. I ordered this USB-to-DB9 serial adapter, along with a separate DB9-to-DB25 adapter, and waited impatiently for them to arrive. After receiving the adapter, I connected the Lisa up to my Windows 7 PC, and of course it didn’t work. The link appeared totally dead, and nothing I did on one computer was seen by the other.

I’d been corresponding by email with a few Lisa experts, and one of them pointed out what I should have realized about the serial connection: I needed a null modem connection, not a straight serial connection. Serial cables have separate TXD and RXD lines for transmit and receive, and in normal usage the computer will transmit on TXD and receive on RXD, while the peripheral will receive on TXD and transmit on RXD. But with my Lisa-to-Windows hookup, both ends thought they were “the computer”, so both were trying to transmit on TXD. Argh!

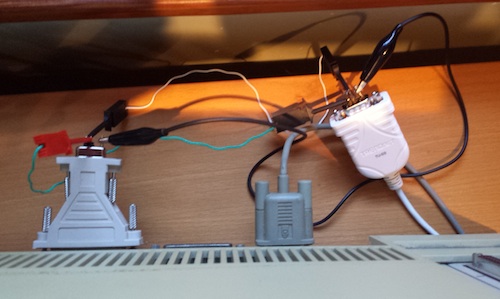

I looked into buying a null modem adapter, which would also have required getting a gender changer too. But I got impatient, and finally just built my own solution out of some jumper wires to swap TXD and RXD. It works.

serial-adapter


Emulation

The best diagnostic tool I’ve found is the floppy tester function of BLU, which generates sector-by-sector debug info. There are some categories of disk problems that BLU doesn’t report, such as drive speed adjustment problems and synchronization problems, but it’s still the most powerful tool for the job.

I’ve been corresponding with two people who own Lisas and Floppy Emus, and the three of us have been testing various Emu firmware versions and comparing the test results. With the latest “Lisa Emu” firmware, the emulation doesn’t work at all on a Lisa 2/5, but does work on a 2/10. These two Lisa models have completely different floppy controller hardware that should be functionally equivalent, but some hidden difference is clearly important here. More on that later.

On the Lisa 2/10, we discovered that the Emu firmware routine that generates the 10-bit bitslip marker wasn’t working. The bitslip marker is used by the floppy controller to find the correct byte-to-byte framing in the floppy data serial bitstream. After fixing that, the emulation started worked on the Lisa, but very slowly. There were clearly still lots of floppy errors happening, slowing down the I/O, even though it eventually succeeded.


Disk Rotation Speed

When testing with BLU, doing a sequential read of all the sectors on the disk, it appeared to freeze for about 15 seconds before reading the first sector on each track. BLU didn’t report any errors, but there was clearly something wrong. After some discussion with my remote Lisa testing partners, we began to suspect this was a problem with the simulated rotation speed of the emulated disk, and we were right.

With an Apple 400K floppy disk drive, the drive spins at different speeds depending on which track is being accessed. The disk is divided into five speed zones, with five different rotational speeds ranging from 394 to 590 RPM. The computer directly controls the drive’s rotational speed by modulating a signal called PWM, and the drive indicates its current speed with a signal called TACH. So the computer sets PWM, then reads TACH and verifies that the desired rotational speed has been reached. If the verification fails, a Macintosh will report error -79: “can’t correctly adjust disk speed”. But what will a Lisa do?

The Floppy Emu doesn’t actually use the PWM signal, but instead it sets the TACH value directly, based upon which track is accessed by the computer. I tried modifying the Emu firmware to generate an obviously wrong TACH, and the behavior on the Lisa was unchanged. It still wasn’t reporting any errors, but the 15 second pause at the start of each track was still there. This told me that the TACH value was probably wrong all along, and that the Lisa was waiting about 15 seconds on each track for the TACH speed to become correct, then giving up and attempting the I/O anyway.

I blindly experimented with different formulas for TACH. Make it faster? Slower? Change the speed by a percentage, or by a constant offset? After lots of trial and error, I found that scaling TACH by 2.5% across the board made all the 15 second pauses disappear. So in effect, the Emu is reporting that the drive’s rotational speed is 2.5% faster than the spec. Why is this necessary? I honestly have no idea. The revised formula is almost certainly still wrong, but it seems to work well enough for now.


Inter-Sector Gap and Interleave

The sectors on a normal Macintosh disk are interleaved 2:1, with a short gap of dead space between sectors. Conceptually it looks something like this timeline view:

0000000000.6666666666.1111111111.7777777777.2222222222.8888888888 etc.

The 2:1 interleave means sector 6 follows sector 0, then come sectors 1, 7, 2, 8, 3, etc. The gap between each sector is about 10% the duration of the sector itself. The purpose of the interleave is to get the fastest possible I/O speeds when doing sequential reads of many contiguous sectors, allowing for some amount of CPU processing time after reading each sector that wouldn’t be possible with a 1:1 interleave.

For a sequential read of many sectors and a correctly tuned interleave, after locating the first sector on a track, the floppy controller should see zero unwanted sectors go by before the next desired sector appears. But I discovered that for BLU’s sequential read test, the floppy controller was almost always seeing 11 unwanted sectors before the desired sector appeared. There are 12 sectors per track on this region of the floppy, so 11 unwanted sectors meant the Lisa was just missing the desired sector, and had to wait for an entire rotation of the simulated disk (11 more sectors) before the desired sector rolled around again. In short, this meant it needed a higher interleave than 2:1. But that couldn’t be right, because real Mac disks are interleaved 2:1, and the Lisa under Macworks can read them without problems.

I wasted a lot of time experimenting with different interleave values, and different gap sizes between the sectors. Eventually I found a combination that led to zero unwanted sectors after the first sector of the track, but it required a huge and unrealistic inter-sector gap size. And while it made the BLU floppy test results look better, it actually performed worse in real-world tests, copying files under Macworks.

Finally I had the idea to repeat the BLU floppy test with a real floppy disk and drive, and observed the same 11 unwanted sectors before the desired sector. Aha! This told me the issue was actually with the BLU test, and not with the Floppy Emu firmware. BLU must be doing a non-trivial amount of CPU computation or other I/O after each sector, more than is normally performed by the OS during a sequential read, so that by the time it’s ready for the next sector, the desired sector has already rotated past. I reverted all of my changes, and put the inter-sector gap size back where it was originally. The BLU results got worse again, but real-world performance under Macworks improved noticeably.


Recalibrations?

One more mystery remains unsolved. In all of my BLU tests, the reported value for recalibrations (Rcl) is always 4C. For one of the other testers, it’s always 02. I’m not sure yet what the third tester is seeing for Rcl. The BLU manual appendix D says Rcl is “recalibrations remaining”, and that an operation normally starts with 1 recalibration remaining and counts down from there – so both 4C and 02 are anomalous. What’s the significance of this? It needs more investigation.


Real-World Tests

Using a Lisa 2/10 system, I booted Macworks XL from the Lisa’s hard drive. By holding down the left option key, I told Macworks to initialize the Macintosh environment, but wait for a floppy disk to actually boot the Mac OS. Using a real 400K floppy drive and disk, I booted System 3.2, measuring the time from disk insertion to ready desktop at 37 seconds. Then I repeated the same experiment with Floppy Emu and a disk image of System 3.2, and measured it also at 37 seconds. So it works! No more mysterious slowdowns: Floppy Emu on the Lisa performs at the same speed as a real floppy.

As a second test, I booted Macworks from the Lisa’s hard drive, then used Floppy Emu to insert a 400K disk image containing MacPaint and MacWrite. The disk image appeared on the desktop within a few seconds of inserting it, and copying MacPaint from the Emu to the Lisa’s HD only took a few seconds more. I was also able to copy files from the HD back to the emulated floppy disk without problems. Given what I’m seeing in these tests, the current firmware should provide a fully usable and full-speed floppy emulation for the Lisa under the Macworks environment.


Try It

If you’ve got a Lisa and a Floppy Emu, you can try the new firmware yourself. I’ve named this firmware version lisa-emu-1.0S3-F11, and it contains all the fixes and adjustments described above in order to make Macintosh disk emulation work on the Lisa in the Macworks environment. Native Lisa floppy emulation still isn’t implemented, but I hope to tackle that soon.
