3D Printed Floppy Emu Case Experiment

3demuprint

My clear acrylic laser-cut case design for Floppy Emu looks sharp, but doesn’t match the visual style of classic Apple II or Macintosh systems. It’s also a bit tedious to assemble. A few people have suggested a Floppy Emu case that looks more like a retro 3.5 or 5.25 inch Apple drive, with Apple design details and a beige/white color. In that spirit, my friend Allan recently did some experiments with a 3D printed white case for the Floppy Emu, and the results look promising.

3D printing has the advantage of making any shape possible, instead of being constrained to interlocking 2D pieces with laser cutting. This enables the case to be built as just two pieces, rather than the six pieces needed for the laser-cut version. It also enables the button plungers to be built directly into the top plate, so they can’t fall out, making the whole thing easy to assemble. If you’ve struggled with the button plungers in the laser cut case, then you’ll appreciate this.

With 3D printing, it’s also possible to approach the appearance of a retro computer accessory. The case can be matte white, instead of glossy acrylic. 3D grooves and other small details can be modeled directly into the case, instead of being limited to 2D etching. Nobody will confuse it with a 1984 Apple peripheral, but at least it will be a lot closer.

I’ve mostly avoided 3D printing until now, because I’ve found it to be slow, expensive, and imprecise. Each one of these test prints required many hours of printer time and baby-sitting. The large time sink wouldn’t an issue if I used a commercial 3D printing service instead of home printing, but initial estimates are that a 3D printed case would cost perhaps 3x as much to manufacture as the current laser-cut case design. Maybe that would still be OK if the improved appearance and ease of assembly made it worth the extra cost to customers, but it’s a lot to ask.

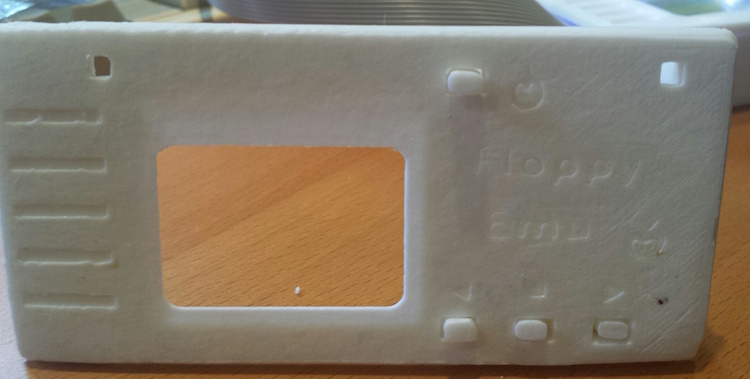

Imprecision has been my biggest concern with 3D printing. Using my own budget printer, it seems half the prints I make come out badly deformed. Even the “good” prints always have a smooshed corner or deformed detail or other minor problem. It’s not terrible if you’re making a prototype for self-use, but I’m not sure it would be acceptable if making hundreds of them for sale to customers. Allan’s first case experiments showed some of the same types of deformities, although he was able to improve it somewhat in later iterations by making adjustments to his printer settings. Here’s an example of what I’m talking about:

20161130_114925_resized copy

Note how some of the grooves at left aren’t clean and even, and there’s a diagonal texturing across the whole surface that’s visible in some areas but not others. It’s hard to see in the photo, but the text and icons also have a slightly uneven appearance.

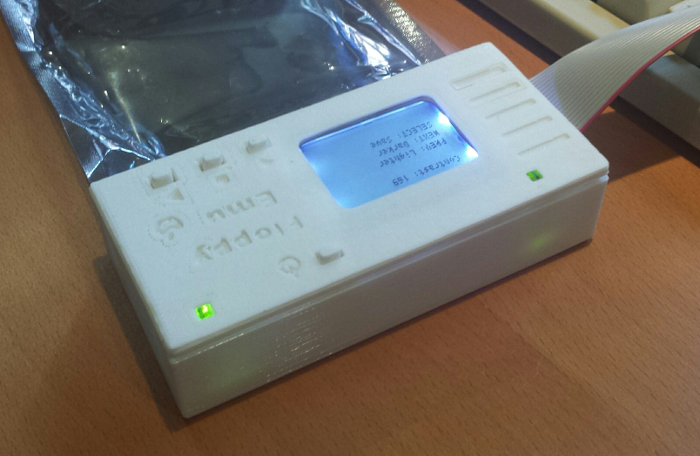

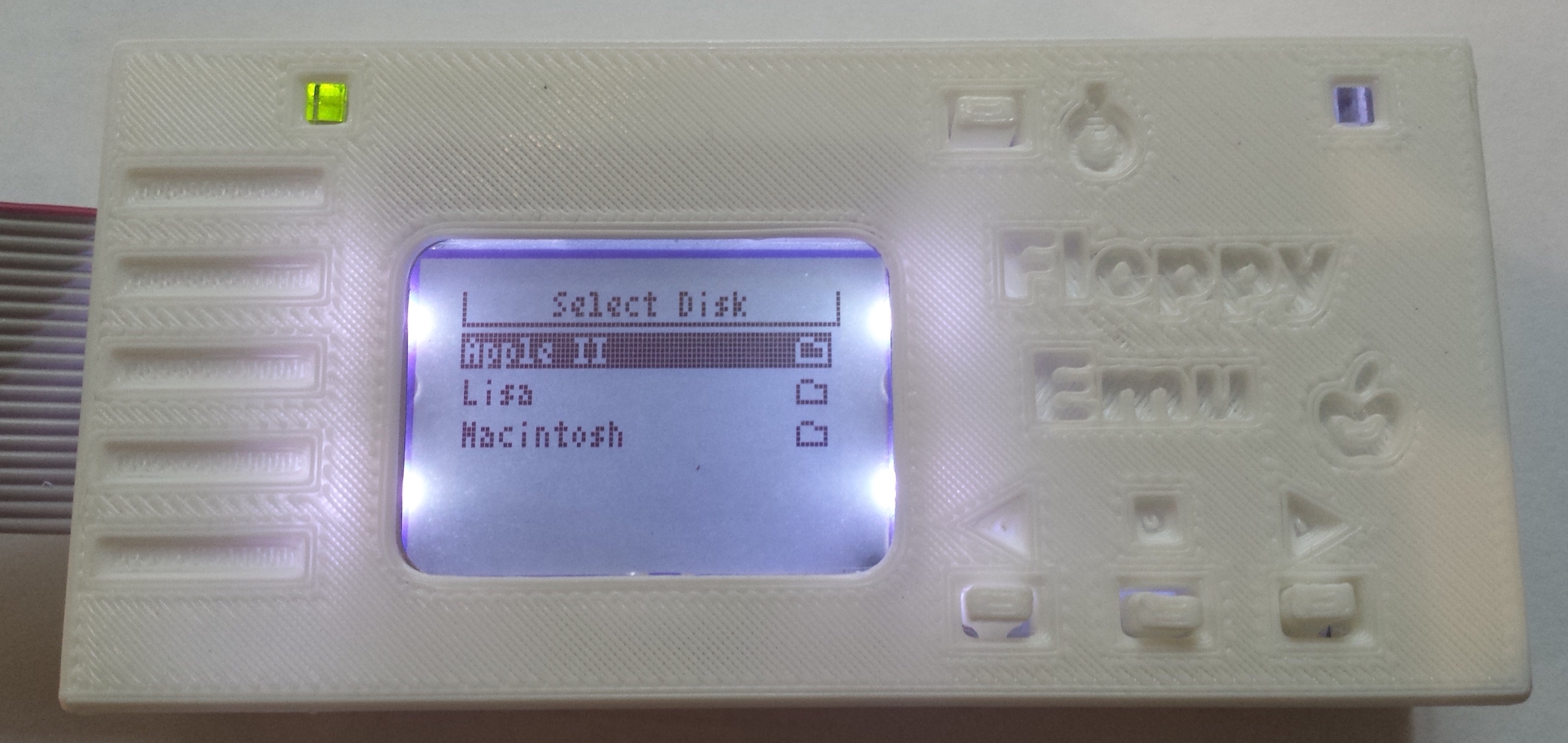

What surprised me was a test print made in Allan’s friend’s high-end 3D printer: it’s much more professional-looking, with very consistent print appearance across the whole case. That’s the print you see in the title photo above. I don’t know exactly what model of printer it was, or the cost, but I’ll try to find out. Here’s a close-up of the case from the better 3D printer, for comparison (click the image to see a high-resolution version).

20161130_130251 copy

A question to readers: would a 3D printed “retro-style” Floppy Emu case interest you? What features do you think would be most important? What do you think would be a fair price for something like this?
